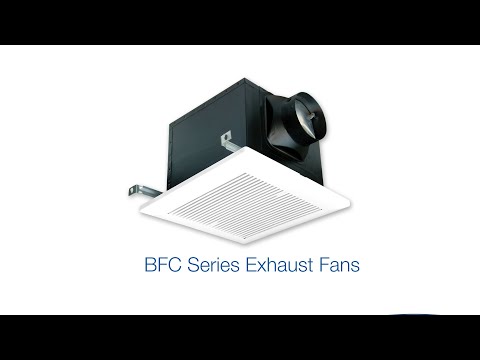

Air King’s ENERGY STAR® certified BFC humidity sensing exhaust fans provide quiet, effective and affordable ventilation for your bathroom, laundry room or other areas of the home needing ventilation. The integrated humidistat senses the humidity level of the room and turns the fan on until the humidity level is below the preset percentage. Humidity level can be set up to 80% relative humidity. The energy efficient motor is suitable for continuous operation and can be used to comply with ASHRAE 62.2 standards. The unit easily installs using the included adjustable hanging brackets and the 4 inch round metal duct connector with damper protects against backdrafts. The white, low profile plastic grill is unobtrusive and complements almost all decors. The BFC series humidity sensing exhaust fans are UL listed for installation over a tub or shower on a GFCI circuit, are HVI Certified, and can be used to comply with CALGreen. Perfect for use in mid size to larger bathrooms.
ENERGY STAR® certified quiet exhaust fan (learn more)
Excellent ASHRAE 62.2 solution (learn more)
Can be used to comply with California Title 24 requirements (learn more)
Can be used to comply with the ventilation standards required by LEED for Homes (learn more)
Easily installs using the included adjustable hanging brackets.
UL listed for installation over a tub or shower on a GFCI circuit.
4″ round duct connector with damper protects against backdrafts and ensures quiet exhaust fan operation.
Side access panel allows you to wire the fan from inside or outside the housing.
HVI Certified performance.
Model | BFC90H | BFC100H | ||
---|---|---|---|---|
Specification Sheet Download | BFC90H | BFC100H | ||
CFM @ .1 SP | 90 | 100 | ||
CFM @ .25 SP (High-speed) | 75 | 85 | ||
Sones @ .1 SP | 1.0 | 1.0 | ||
Sound Level | Very Quiet | Very Quiet | ||
Watts | 19.0 | 22.3 | ||
Effective Ventilation Area | 90 to 115 sq. ft. | 100 to 125 sq. ft. | ||
ASHRAE 62.2 Ventilation | Whole House/ Local | Whole House/ Local | ||
ENERGY STAR® certified | YES | YES | ||
Can be used to Comply with California Title 24 requirements | YES | YES | ||
CALGreen | Compliant for use in bathrooms or whole building ventilation | Compliant for use in bathrooms or whole building ventilation | ||
Duct Size | 4″ round | 4″ round | ||
Collar / Damper | Metal | Metal | ||
Mounting | Hanger Bars | Hanger Bars | ||
Housing | Metal | Metal | ||
Dimensions |
Exhaust Fan Housing with Integrated Humidistat
Blower (motor)
Hanger Bars for Mounting
Damper and Duct Collar
Grill
User Manual
